DLC Coating | Diamond-Like Carbon Coating

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

DLC coatings can have different structures and properties that rely on the ratio of SP3 (diamond) and SP2 (carbon) or other fillers like hydrogen, silicon, and metal in the layer.

We can help you bring your ideas to life with our fast and affordable prototyping services. Our engineers can help you refine your design and produce a working prototype in no time.

(Al,Ti)N coating, excellent adhesion strength for HSS tools.

Violet coating is the name of the technology of successfully applying a Miracle type coating to HSS substrate tools. The newly developed technology of applying (Al,Ti)N coating at the low temperatures required for HSS substrates, means that Violet coating has the same level of adhesion strength as Miracle coating. Additionally high film hardness and excellent oxidation resistance properties have also been realised.

Newly-developed (Al,Cr)N coating with improved wear resistance.
The smoothening treatment of the coating layer reduces the cutting resistance and improves chip discharge significantly. This next-generation coating offers longer tool life and higher efficiency in machining difficult-to-cut materials.

Proprietary CVD diamond coating produces excellent wear resistance and smooth hole surface.

Standard thickness: 10 microns

The newly developed CVD diamond coated carbide material achieves outstanding abrasion resistance and smoothness due to a proprietary fine multilayer diamond crystal control technology. Suitable for cutting hard brittle materials such as cemented carbide.

Diamond coating for non-ferrous and new non-metal materials.

Standard thickness: 10 microns

Owing to Mitsubishi’s unique plasma chemical vapor deposition (CVD) coating technology, great combination of coating hardness similar to that of natural diamond has been combined with a good adhesion to carbide substrates.

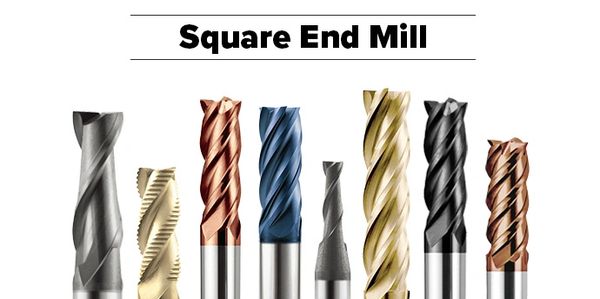

DF end mill series suitable for graphite machining.

(Al,Ti)N coating, excellent adhesion strength for HSS tools.

Violet coating is the name of the technology of successfully applying a Miracle type coating to HSS substrate tools. The newly developed technology of applying (Al,Ti)N coating at the low temperatures required for HSS substrates, means that Violet coating has the same level of adhesion strength as Miracle coating. Additionally high film hardness and excellent oxidation resistance properties have also been realised.

For higher hardness, higher speed and longer tool life!

Standard thickness: 10 microns

In comparison with the conventional coating single-phase nano crystal coating technology offers higher coating hardness and heat resistance.
When machining hardened steels it can be seen that the LABTOS coating offers a lower friction of coefficient and as such prevents abnormal damage such as chipping.
